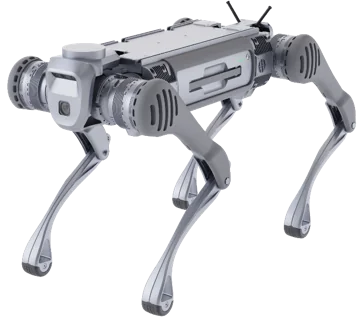

Industry grade quadruped B2
- Sizeabout 1098mm*450mm*645mm;
- Weightabout 60kg;
| (a) Hardware platform | |
| Weight (with battery) | about 60kg; |
|---|---|
| Length, width and height (when standing) | about 1098mm*450mm*645mm; |
| Endurance | continuous walking with no load, the endurance is more than 20km and the endurance is more than 5 hours; continuous walking with a load of 20kg, the endurance is more than 15km and the endurance is more than 4 hours |
| Can be up and down a stairs of 40cm in the forward direction | |
| Continuous walking load capacity ≥ 40kg | |
| The fastest speed of 5m/s | |
| Battery capacity of 45Ah, rated energy 2250Wh, maximum support for 15A charging | |
| (b) Sensing module | |
| Built-in multi-group depth camera, multi-group high-definition camera | |
| Ignore the terrain, combined with the perception of real-time switching gait and landing point | |
Source: Unitree Robotics B2 & B2-W Product product data-2024.8, sheet B2 series
